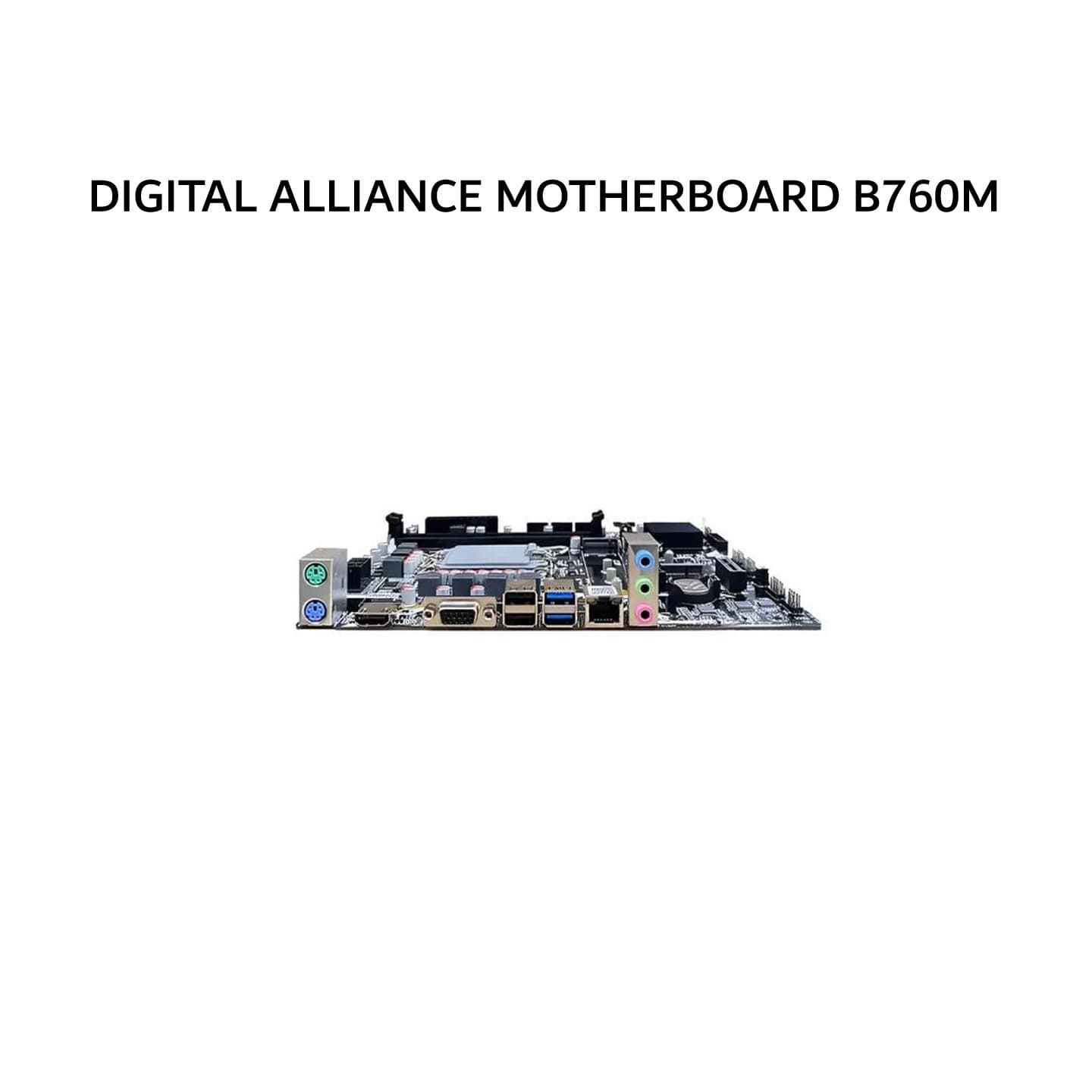

DIGITAL ALLIANCE MOTHERBOARD B760M PRO4 DDR4 (GEN 12-14) LGA1700 /INTEL 2X

DIGITAL ALLIANCE MOTHERBOARD B760M PRO4 DDR4 (GEN 12-14)

Spesifikasi Strip

Socket: Intel LGA1700

Chipset: Intel B760

CPU Support: Intel Core Gen 12, Gen 13, Gen 14; Pentium Gold; Celeron

Form Factor: Micro-ATX (180mm x 225mm)

Garansi: 2 Tahun Resmi

Memori

2x DDR4 DIMM slots

Dual Channel

Max 64GB

Support: 2133 / 2400 / 2666 / 2933 / 3200 MHz

Storage & Expansion

1x M.2 SSD slot (2240 / 2260 / 2280, support NVMe & SATA)

1x M.2 WiFi slot

3x SATA III (6Gb/s)

1x PCIe x16

1x PCIe x1

Grafis & Audio

1x HDMI 2.1 (support 4K@60Hz)

1x VGA

Audio: Realtek ALC897, 7.1 Channel HD

Konektivitas

LAN: Realtek 8111H, 10/100/1000 Mbps

USB:

2x USB 3.2 Gen1/Gen2 (rear I/O)

2x USB 2.0 (rear I/O)

1x USB 3.0 Header

1x USB 2.0 Header

Power & Header

1x 24-pin ATX

1x 8-pin CPU

1x CPU_FAN

1x SYS_FAN

Front Panel, Audio, COM, Clear CMOS, Speaker headers

️ OS Support

Windows 10 (64-bit), Windows 11

Monitoring: CPU/System Temp, Fan Speed, Voltage

Smart/Manual CPU Fan Control
