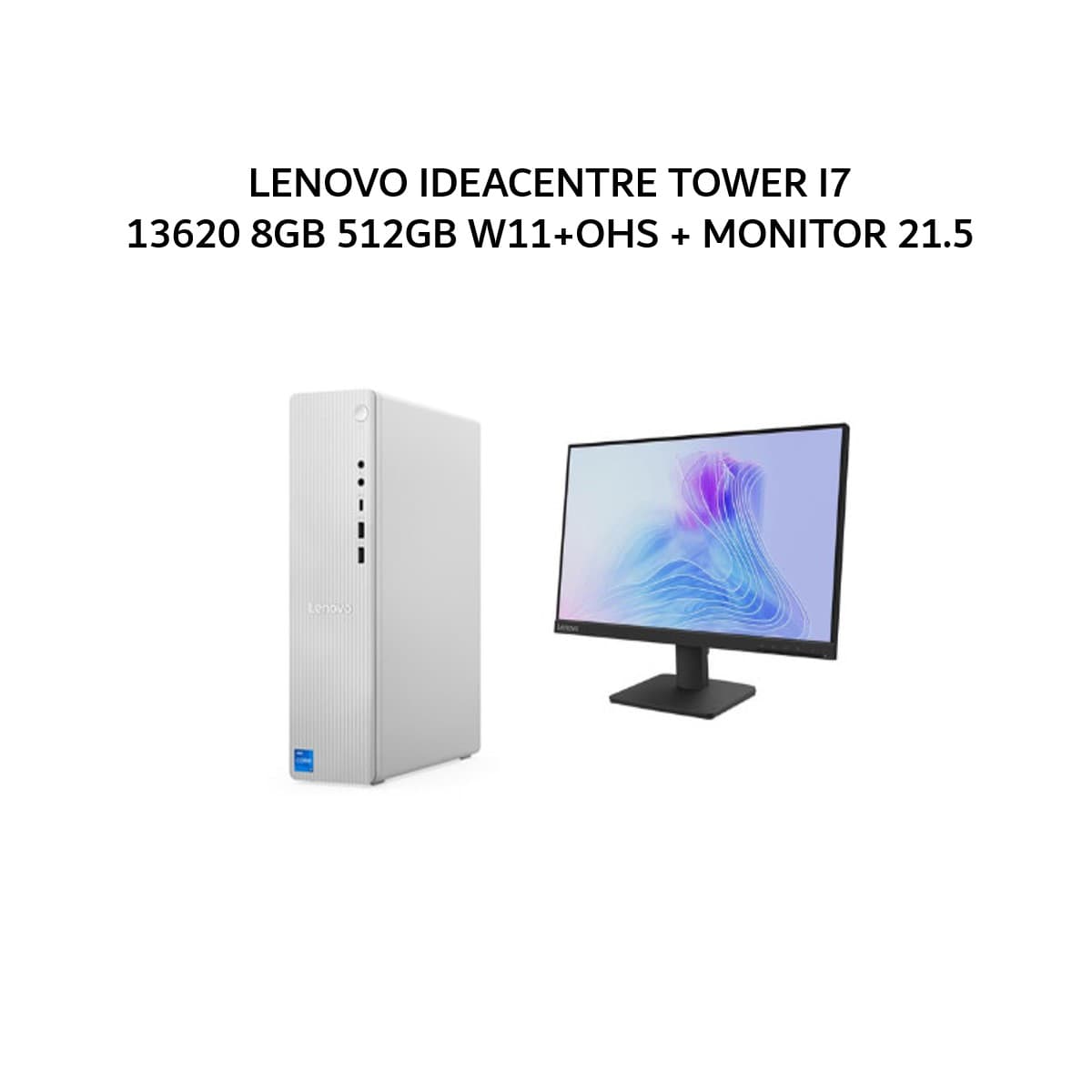

LENOVO IDEACENTRE TOWER I7 13620 8GB 512GB W11+OHS 1Y GRY -6NID + MONITOR 21.5

LENOVO IDEACENTRE TOWER I7 13620 8GB 512GB W11+OHS 1Y GRY -6NID + MONITOR 21.5

PERFORMANCE

Processor Intel Core™ i7-13620H, 10C (6P + 4E) / 16T, P-core up to 4.9GHz, E-core up to 3.6GHz, 24MB Intel® Smart Cache

Graphics Integrated Intel® UHD Graphics

Chipset Intel® SoC Platform

Memory 1x 8GB SODIMM DDR5-5200

Memory Slots Two DDR5 SODIMM slots, dual-channel capable

Max Memory Up to 32GB DDR5-5200

Storage 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe®

Max Storage Support "Up to three drives, 1x 3.5"" HDD + 2x M.2 SSD

• 3.5"" HDD bay only for customer self upgrade

• M.2 SSD up to 1TB each"

Card Reader No Card Reader

Optical None

Audio Chip High Definition (HD) Audio, Realtek® ALC623-CG codec, 24-bit DAC supports 44.1K/48K/96K sample rate, 2 channel DAC supports 16/20/24-bit PCM format for independent two stereo channel or 2.1 audio playback, 24-bit ADC supports 44.1K/48K/96K sample rate, 2 channel ADC supports 16/20/24-bit PCM format for independent two stereo channel audio inputs

Speakers No speakers

Power Supply 260W 90%

DESIGN

Keyboard USB Calliope Keyboard, Black, English

Mouse USB Calliope Mouse, Black

Expansion Slots One PCIe® 3.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm, One PCIe® 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm, Three M.2 slots (one for WLAN, two for SSD)

Case Color Cloud Grey

System Fan 2x default

Pen Pen Not Supported

Form Factor SFF (8.2L)

Dimensions (WxDxH) 89 x 291.4 x 339.5mm (3.5 x 11.5 x 13.4 inches)

Weight Around 3.59 kg (7.9 lbs)

CONNECTIVITY

WLAN + Bluetooth Wi-Fi® 6, 802.11ax 2x2 + BT5.2

WWAN WWAN Not Supported

Ethernet Integrated 100/1000M

Front Ports 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging, 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), 1x headphone / microphone combo jack (3.5mm), 1x microphone (3.5mm)

Rear Ports 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), with Smart Power On, 2x USB-A (Hi-Speed USB / USB 2.0), 1x HDMI® 2.1 TMDS, 1x VGA, 1x Ethernet (RJ-45), 1x audio-out (3.5mm), 1x power connector

SECURITY & PRIVACY

Security Chip Firmware TPM 2.0 integrated in SoC

MANAGEABILITY

System Management None

SERVICE

Base Warranty 1-year, Courier or Carry-in

Included Upgrade 1Y Onsite - Idea DT (ESS)

CERTIFICATIONS

Green Certifications ErP Lot 3, RoHS compliant

SOFTWARE

Operating System Windows® 11 Home Single Language, English

Bundled Software Microsoft® 365 Basic + Office Home 2024
