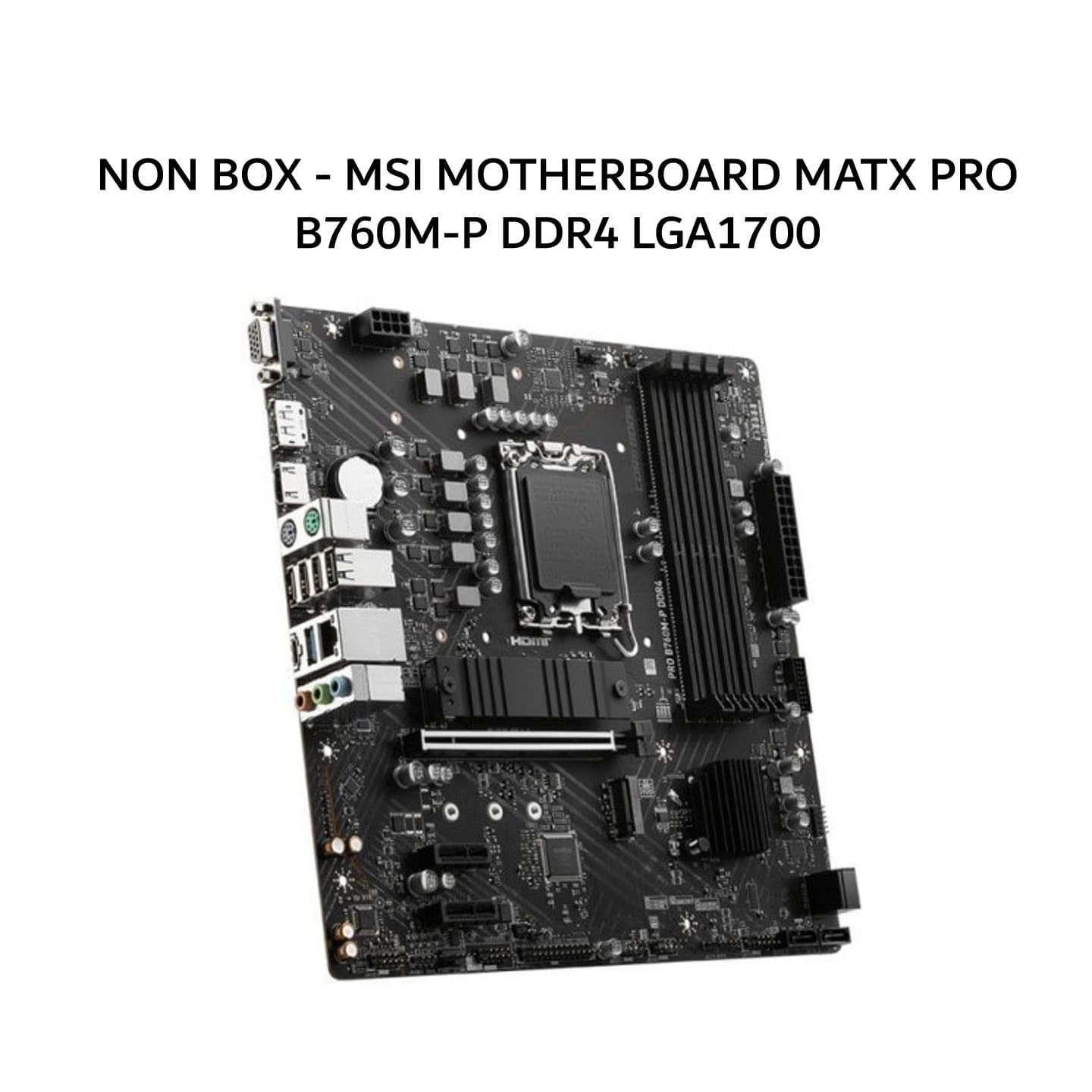

NON BOX - MSI MOTHERBOARD MATX PRO B760M-P DDR4 LGA1700 /INTEL 3Y

NON BOX - MSI MOTHERBOARD MATX PRO B760M-P DDR4 LGA1700 /INTEL 3Y

Garansi Resmi 3 Tahun

CHIPSET

INTEL B760

CPU SUPPORT

Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

LGA 1700

MEMORY

4x DDR4, Maximum Memory Capacity 128GB

Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)

Max. overclocking frequency:

• 1DPC 1R Max speed up to 4800+ MHz

• 1DPC 2R Max speed up to 4600+ MHz

• 2DPC 1R Max speed up to 4400+ MHz

• 2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel® Extreme Memory Profile (XMP)

ONBOARD GRAPHICS

1x HDMI™

1x DisplayPort

1x VGA

Support HDMI™ 1.4, maximum resolution of 4K 30Hz*

Support DP 1.4, maximum resolution of 4K 60Hz*

Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT

1x PCI-E x16 slot

2x PCI-E x1 slot

PCI_E1 PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 PCIe 4.0 supports up to x1 (From Chipset)

PCI_E3 PCIe 4.0 supports up to x1 (From Chipset)

STORAGE

2x M.2 slot

M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

4x SATA 6G port

* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

4x USB 2.0 (Rear)

4x USB 2.0 (Front)

1x USB 3.2 Gen1 Type A (Rear)

2x USB 3.2 Gen1 Type A (Front)

1x USB 3.2 Gen2 Type C (Rear)

LAN

Realtek® RTL8111H Gigabit LAN

AUDIO

Realtek® ALC897 Codec

7.1-Channel High Definition Audio
