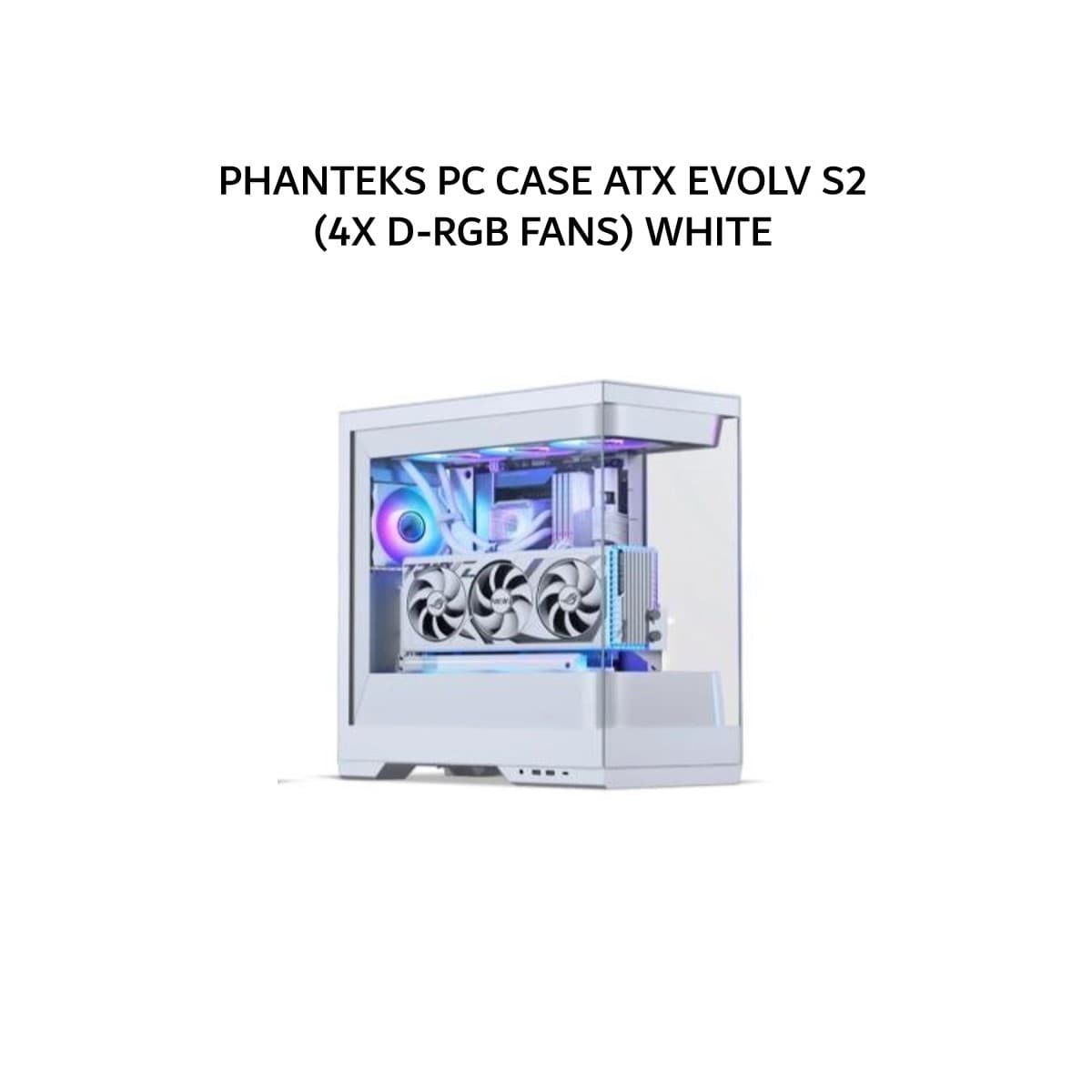

PHANTEKS PC CASE ATX EVOLV S2 (4X D-RGB FANS) WHITE

PHANTEKS PC CASE ATX EVOLV S2 (4X D-RGB FANS) WHITE 1Y

SPECIFICATIONS

General

Product Dimension (DxWxH) 455 x 230 x 525 mm

Form Factor Mid Tower

Mainboard Support ATX, Micro-ATX, Mini-ITX, E-ATX (up to 280mm wide)

Rear-Sided Mainboard Support Yes, ATX

Materials Steel Chassis, Tempered Glass

Front IO 1x USB-C 3.2 Gen2x2 + 2x USB 3.0, Microphone/Headphone combo, Reset Button, Power Button

Connectors Power Switch, Reset Switch, HD-audio, USB 3.0, USB-C Type-E

Warranty 5 Years Limited

Expansion

PCI Slots 7

Internal 3.5” Bay 2 (1x if 2x SSD installed)

Internal 2.5” Bay 2 (0x if 2x HDD installed)

Vertical GPU Support Yes, with optional bracket: PH-VGPUKT4.0_03R or PH-PGPUKT4.0_01

Fans & Radiators

Top Fan 3 x 120 mm

Bottom Fan 3 x 120 mm (3x included)

Rear Fan 1 x 120 mm (1x included)

Top Radiator up to 360

Clearances

GPU Length 395 mm

GPU Width 175 mm

CPU Cooler Height 175 mm

Power Supply 210 mm

Top 360 radiator 410 x 125 x 55 mm

Packaging

Package Dimension 605 x 300 x 543 mm

Gross Weight 11.50 kg

Net Weight 9.90 kg

Scope of Delivery

Evolv S2

1x Evolv S2 chassis

1x M25-120 mm Regular D-RGB fan

3x M25-120 mm Reverse D-RGB fan

1x Storage Bracket (2x HDD / 2x SSD)

1x Accessory box with necessary screws
