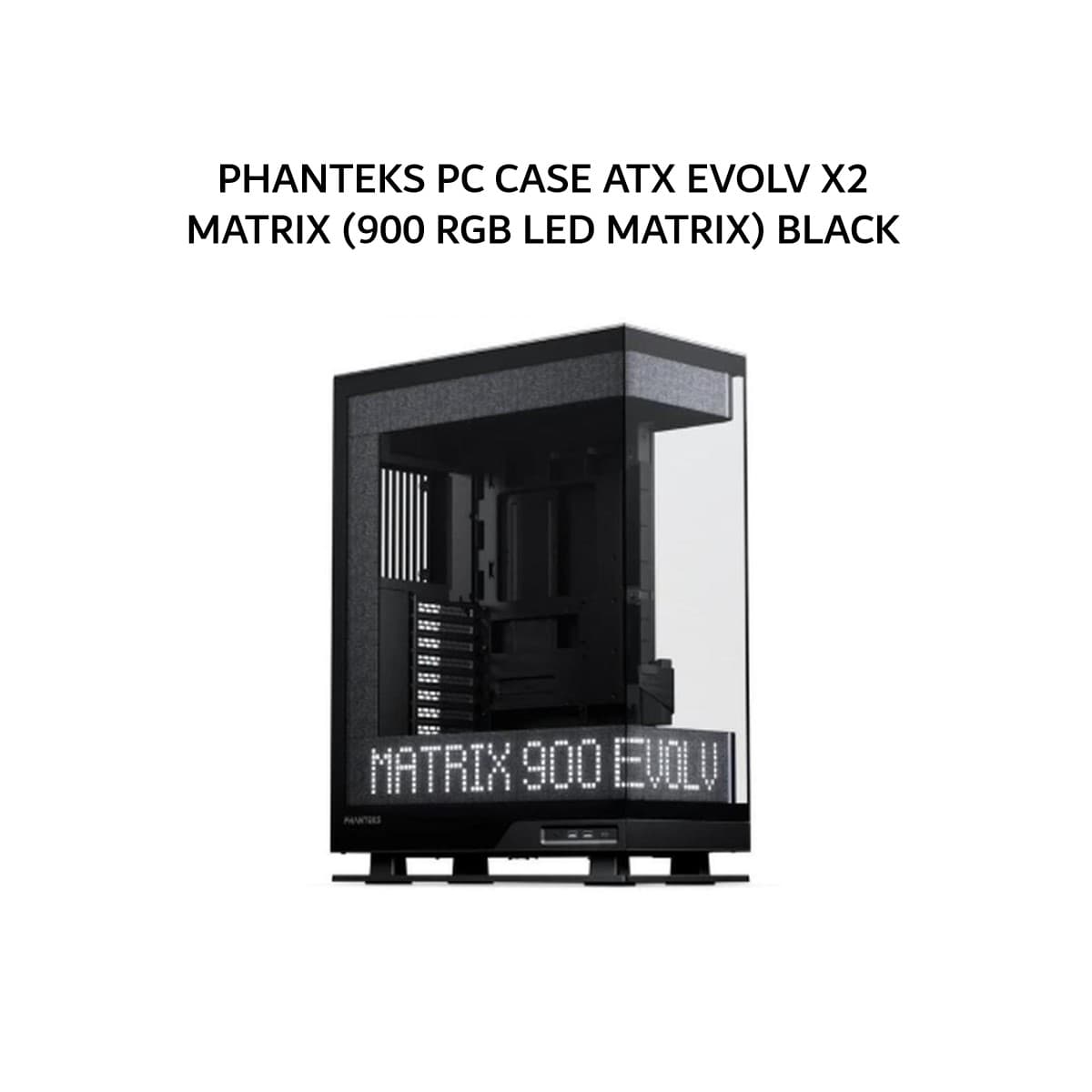

PHANTEKS PC CASE ATX EVOLV X2 MATRIX (900 RGB LED MATRIX) BLACK 1Y

PHANTEKS PC CASE ATX EVOLV X2 MATRIX BLACK 1Y

General

- Model No. : PH-ES524XM_DBK01 (Black) | PH-ES524XM_DMW01 (White)

- Case Dimensions : 454 x 228 x 588 mm | 17.87 x 8.98 x 23.15 in

- From Factor : Mid-Tower

- Mainboard Support : E-ATX | ATX | Micro-ATX | Mini-ITX

- Rear ATX Mainboard Support : MSI Project Zero | ASUS BTF | Gigabyte Project Stealth

- Materials : Steel chassis | Aluminium panels | Tempered glass window | ABS plastic | Polyester

- Expansion Slots : 8

- Vertical GPU Support : Yes

- Internal 2.5 Positions : 5 (+ 1x 3.5 HDD)

- Internal 3.5 Positions : 2 (+ 3x 2.5 SSD)

- Front I/O : 2x USB 3.0, 1x USB-C 3.2 Gen2x2, 1x Microphone | Headphone combo, Power button, Reset button

Matrix Display

- LED Amount : 900

- Power Input : 5V | 5.3A

- Fabric Material : Polyester

- Connectors : Mainboard USB 2.0 header (500 mm) , SATA (500 mm)

Fans 120 | 140

- Total Fans : 7 | –

- Top : 3 | –

- Front : – | –

- Side : – | –

- Rear : 1 | –

- Bottom : 3 | –

Radiator 120 | 140

- Top : Max. 360 | –

- Front : – | –

- Rear : – | –

- Bottom : – | –

Clearance

- CPU Cooler (Height) : 170 mm | 6.69 in

- GPU (Length) : 380 mm | 14.96 in

- GPU (Width) : 170 mm | 6.69 in

- Power Supply : 250 mm | 9.84 in

- Top 360 Radiator (Length x Width x Height) : 415 x 130 x 32 mm | 16.34 x 5.12 x 1.25 in

Extra

- Warranty : 5 Years limited

- Scope of Delivery : 1x Evolv X2 chassis, 1x Storage bracket (Pre-installed), 1x SSD bracket (Pre-installed)

- Accessory Box : 30x Mainboard | SSD screws, 4x Power supply screws, 8x HDD screws, 4x Vertical-GPU bracket screws

, 1x Mainboard stand-off

- Screws : 6x Zip ties, 1x Stand-off removal tool, 1x D-RGB mainboard adapter (500 mm), 1x Microfiber cloth
